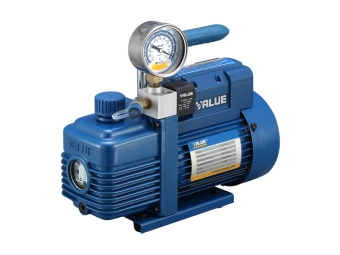

The vacuum pump VALUE is designed to work with refrigerants like HFC and HCFC (eg R410A, R407C). Single stage vacuum pump is used in refrigeration and air conditioning.

:

Key Features

•  Single-stage
•  Compact construction
•  Sight glass to control the oil level
•  Precision vacuum gauge
•  Vacuum solenoid valve prevents back flow of oil into the system

•  Flow: 51 l/min; 1.8 CFM

•  Vacuum Level (Partial / Total): 2 Pa / 150 microns

•  Motor Power: 0.18 kW (0.25 HP)

•  Compression Stages: 1

•  Power Supply: 230 V

•  Frequency: 50 - 60 Hz

•  Power Cord Length: 200 cm

•  Motor Speed at 50 Hz: 1400 rpm

•  Noise Level: 65 dB

•  Inlet Connection: 1/4" SAE

•  Oil Capacity: 0.25 l

•  Oil Type: Mineral, viscosity 46 mm²/s

•  Dimensions: 290 x 124 x 255 mm

•  Weight: 6.7 kg

•  Protection Class: IP44

•  Operating Temperature: 5 - 40°C

•  Storage Temperature: -20 - 60°C

•  Minimum Oil Temperature for Startup: 5°C

•  Shut-Off Valve: Yes

•  Exhaust Plug Thread: M24 x 1.5 mm

•  Vacuum Gauge: External

•  Vacuum Gauge Size: 63 mm

•  Vacuum Gauge Accuracy: Class 1.6

•  Vacuum Gauge Units: psi / MPa / mbar

•  Packaging: Cardboard box
